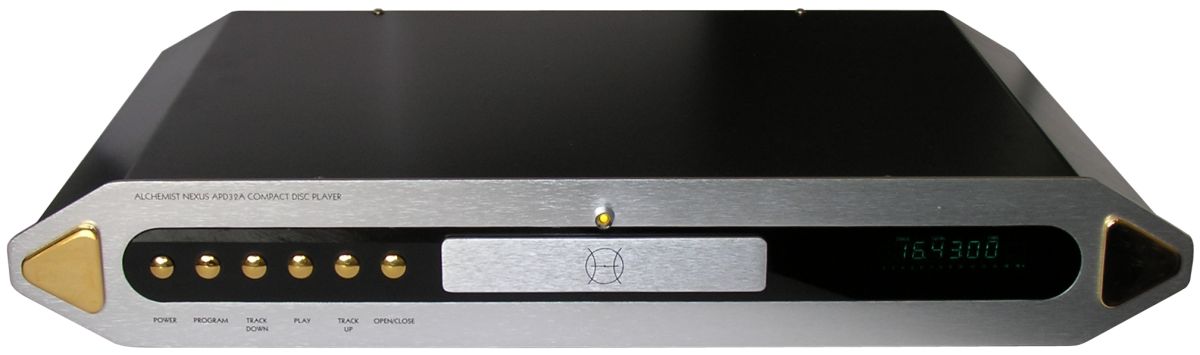

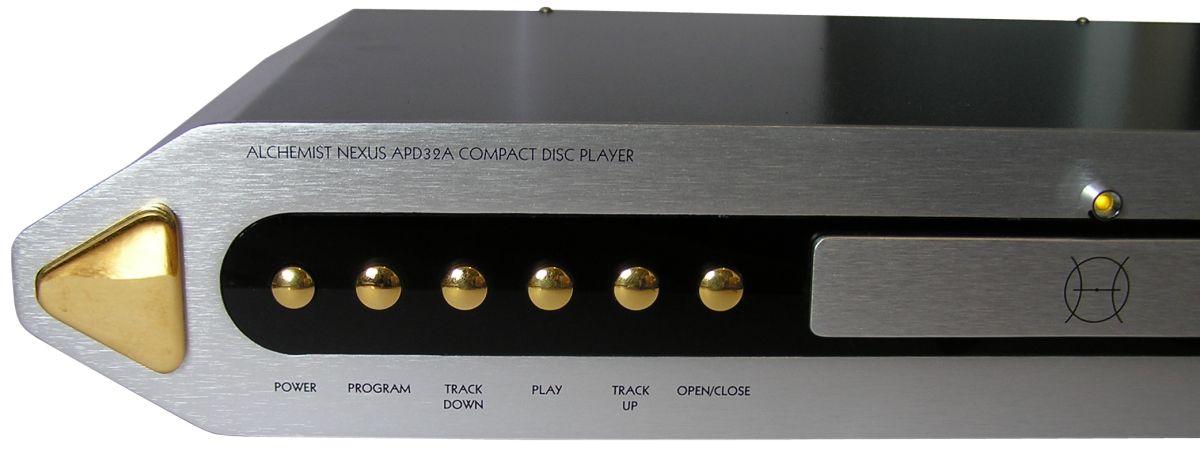

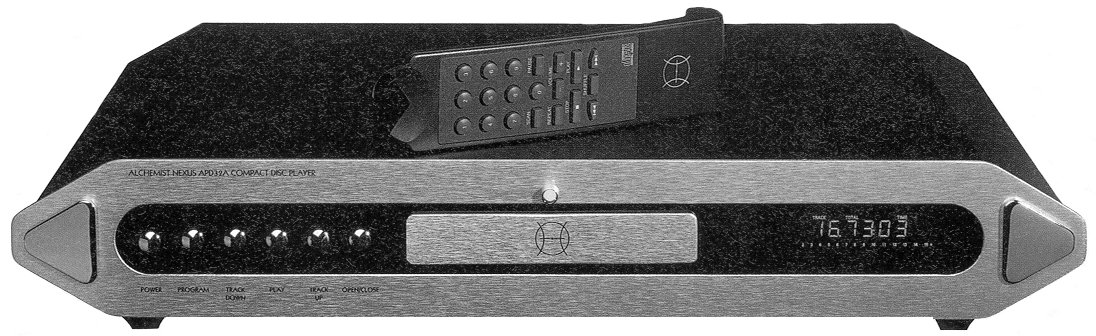

Alchemist Nexus APD32a CD Player
Orange line

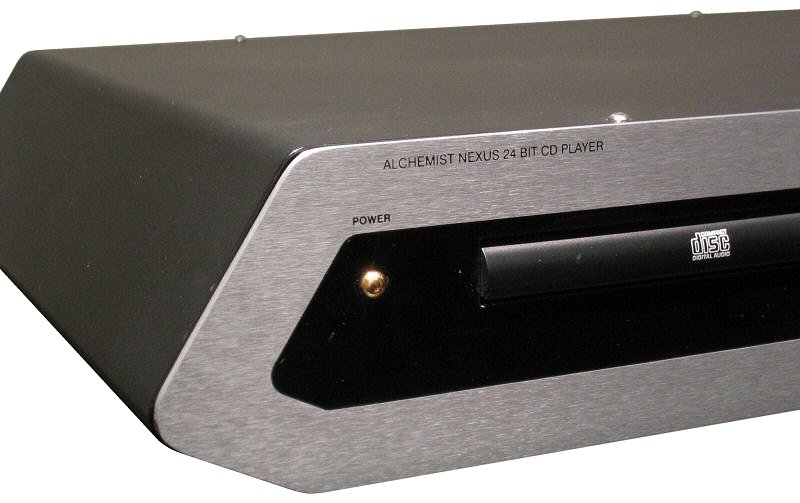

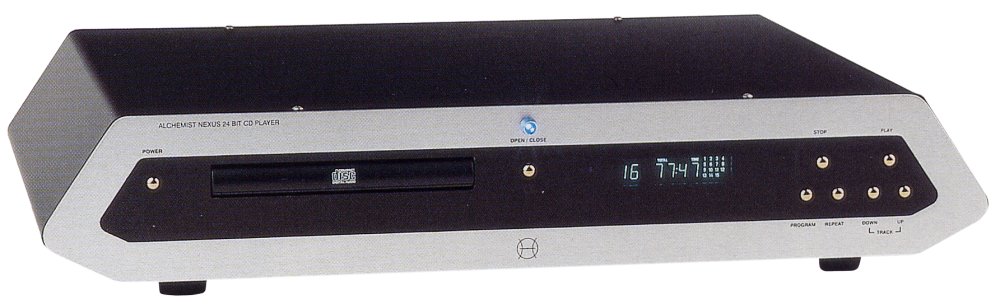

Alchemist Nexus II CD Player
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
(NEXUS APD32a Mk II CD Player)
Orange line
Frequency Range    DC - 22 kHz
Amplitude Linearity    -2db (10Hz-20kHz)
Phase Linearity    0° (20Hz-20kHz)
Dynamic Range    >94db
Signal to Noise Ratio    -100db
Channel Separation    -100db
Total Harmonic Distortion    0.01%
Line Output Level   2V RMS
Power Consumption    24W
Dimensions (WxHxD).   464mm x 75mm x 300mm
Weight ( Packed )    6 kg
Orange line
Orange line
Downloads:
 Nexus Mk II brochure (3.31MB) | HiFi World review
Orange line
Design:
Digital volume control, coaxial digital output, 2 x 18bit DAC/24 bit CD player?
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING

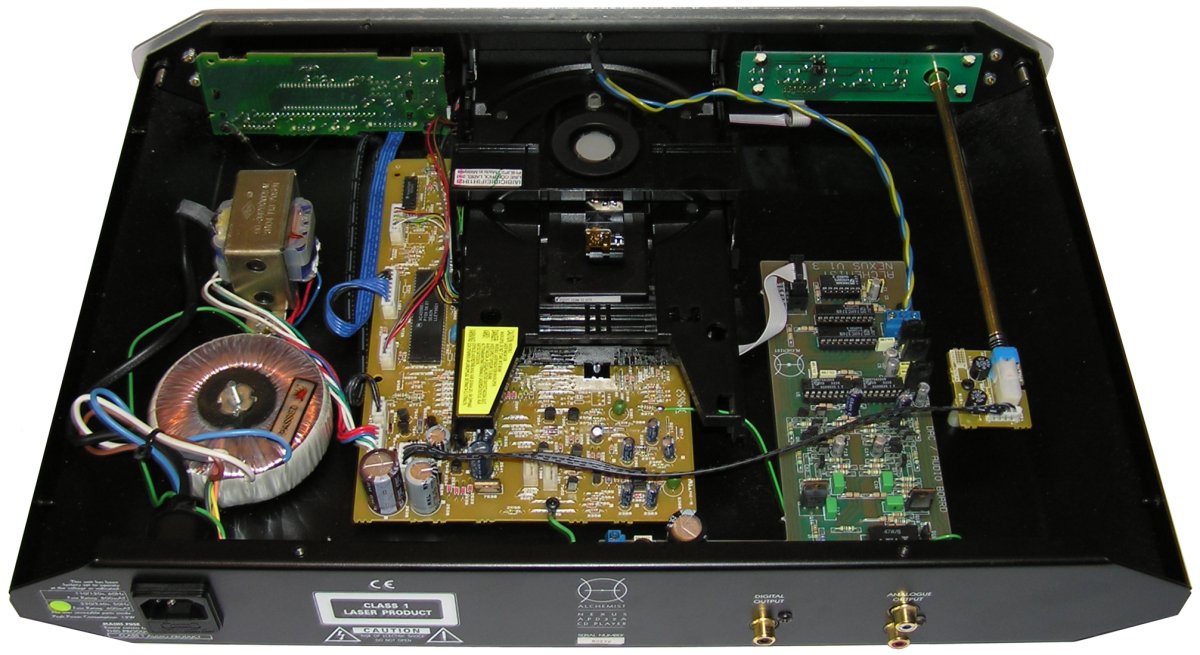

The Alchemist APD32a uses a Philips CDM12.1 laser assembly. If searching for alternatives, try "VAM1201" and "VAM1202"
Orange line
2nd Hand Market:
Original selling price: $865 / £599 (approx)
Orange line
Have you something to contribute to this page? Please contact the site administrator.
