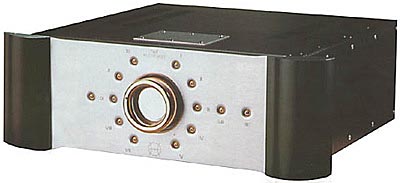

Alchemist "The Pre" APD24 Pre Amplifier
Orange line

Alchemist "The Pre" APD24 Pre Amplifier

Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S

Orange line
Input Sensitivity:   1V Input = 3.7V Output
Maximum Output:    9V
Maximum Output (Transformer Balanced):   12V
Distortion @ 1KHz:   Less than 0.3%
Distortion @ 10 KHz:   Less than 0.3%
Distortion @ 20 KHz:   Less than 0.3%
Input Impedence:   47Kohms RCA
Noise:   Less than 200mV
Peak Power Consumption:   30W
Balanced Input as for Professional Audio Equipment: AES14-1992
Pin 1:   Ground
Pin 2:   + (Positive)
Pin 3:   - (Negative)
Dimensions (W x H x D):   462mm x 180mm x 410mm
Dimensions, packed (W x H x D):   620mm x 340mm x 550mm
Weight:   18kg
Weight, packed:   20kg
Orange line
Orange line
Downloads:
"The" Alchemist Series instruction manual (1MB) | What HiFi Review
Orange line
Design:

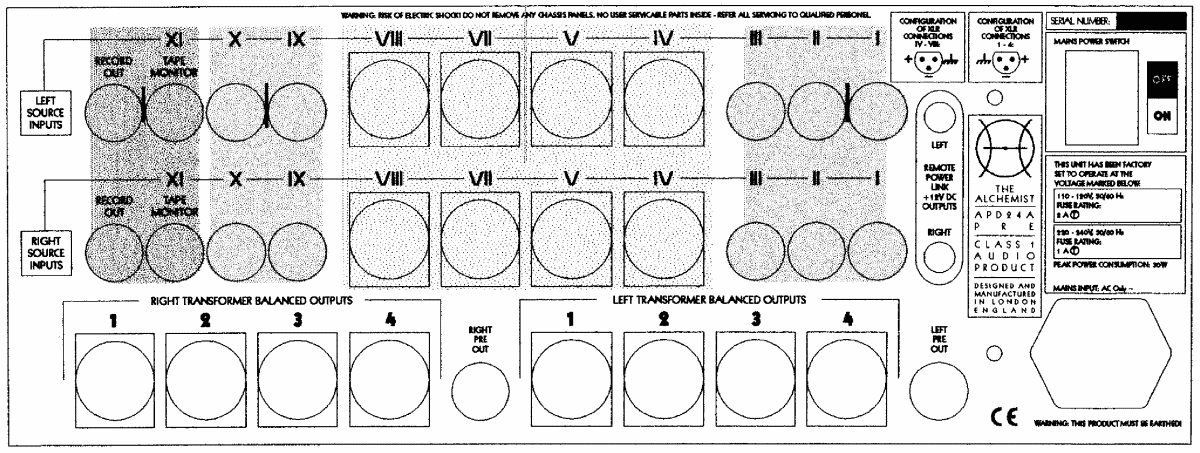

4 sets of stereo pre outputs via balanced XLR connectors and a single set via unbalanced RCA/phono connectors, 6 unbalanced line-level inputs, 4 balanced inputs, tape monitor and record out. Input number "6" was ommited as the input switches on the front panel represent their relative positions on a clock face - there is no input switch where 6 o'clock would be, so no "input 6". Remote control with logic-controlled input switching and motorised volume pot. Touch-sensitive buttons on the fascia. Two sets of voltage trigger outputs enable the activation of The Pre to simultaneously power up matching Alchemist The Mono or The Stereo power amps. Original selling price: 5,000
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Alchemist The Pre amplifiers are extremely rare.
Orange line
Have you something to contribute to this page? Please contact the site administrator.
