Alchemist Forseti APD15A Integrated Amplifier
Orange line
Alchemist Forseti APD15A MkII Integrated Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Input Sensitivity:   170mV
Output @ 1 kHz into 8 ohms:   100 Watts RMS
Frequency Response @ 3V:   -3dB @ 92kHz
Distortion @ 15V o/p, 1kHz   <0.85% THD
Distortion @ 15V o/p, 10kHz   <2% THD
Residual Noise (Max. Volume):   <2mV
Power Consumption (Idle):   100 Watts
Power Consumption (Peak Power):   380 Watts
Dimensions (W x H x D):   465mm x 95mm x 390mm
Weight (Packed):   15kg
Orange line
Orange line
Downloads:
 Forseti Mk2 brochure (4.4MB) | What Hi*Fi? Review | Early Forseti brochure (6.13MB)
Orange line
Design:

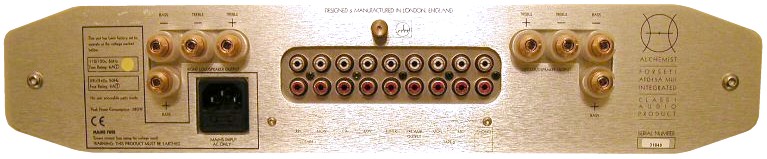

Four line level inputs and two tape loops, pre-amp output enables upgrading with the Alchemist Forseti Power Amplifier.
One of the line-level inputs could be upgraded by adding a plug-in phono stage.
A remote control version of the APD15a - the Forseti APD15rc was also released.

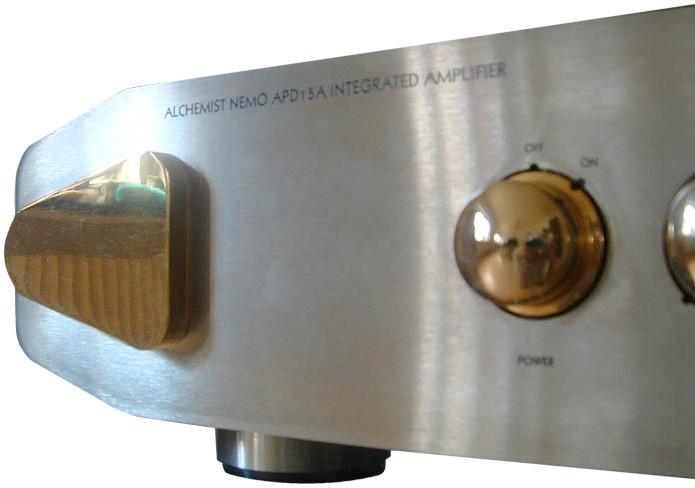

In the German market, the APD15a was sold as an Alchemist "Nemo", rather than "Forseti".
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Forseti Output Circuit diagram
Orange line
2nd Hand Market:
The Forseti integrated should do well as a self-contained second-hand amplifier. It can be upgraded with the addition of a Forseti Power Amplifier or two (for users of bi or tri-wireable speakers).

Original selling price: $2875
Orange line
Have you something to contribute to this page? Please contact the site administrator.
