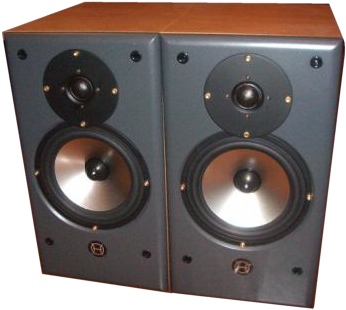

Alchemist ADM-1 Speakers
Orange line
Alchemist ADM-1 Speakers
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S

Orange line
Efficiency:   90dB
Nominal impedance   8 ohms
Crossover frequency:   3.8 kHz
Frequency response   55 - 20,000 Hz +/-3dB
Power handling:   150 watts
Orange line
Orange line
Downloads:
Orange line
Design:

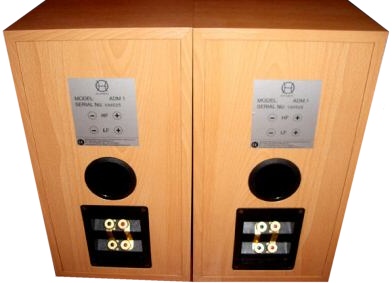

Biwireable, 22mm MDF front baffle, 18mm thick sides and back. Beech finish. Magnetically shielded.
As far as I know, these speakers were designed and built in the Far East for the local market and were not influenced by Alchemist UK design.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Orange line
Have you something to contribute to this page? Please contact the site administrator.
