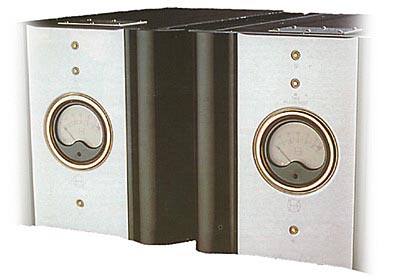

Alchemist "The Mono" APD25 Power Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Input Sensitivity:   850mV for Maximum Output
Maximum Output:    21V = 55W @ 1KHz
Distortion @ 1KHz:   Less than 0.5%
Distortion @ 10 KHz:   Less than 0.5%
Distortion @ 20 KHz:   Less than 0.5%
Input Impedence:   82Kohms
Noise:   Less than 500mV
Frequency Response:   3Hz - 100KHZ (-3dB) @ 1W
Peak Power Consumption:   220W
Balanced Input as for Professional Audio Equipment: AES14-1992
Pin 1:   Ground
Pin 2:   + (Positive)
Pin 3:   - (Negative)
Dimensions (W x H x D):   315mm x 330mm x 530mm
Dimensions, packed (W x H x D):   480mm x 490mm x 670mm
Weight:   48kg
Weight, packed:   50kg
Orange line
Orange line
Downloads:
"The" Alchemist Series instruction manual (1MB) | What HiFi Review
Orange line

Design:

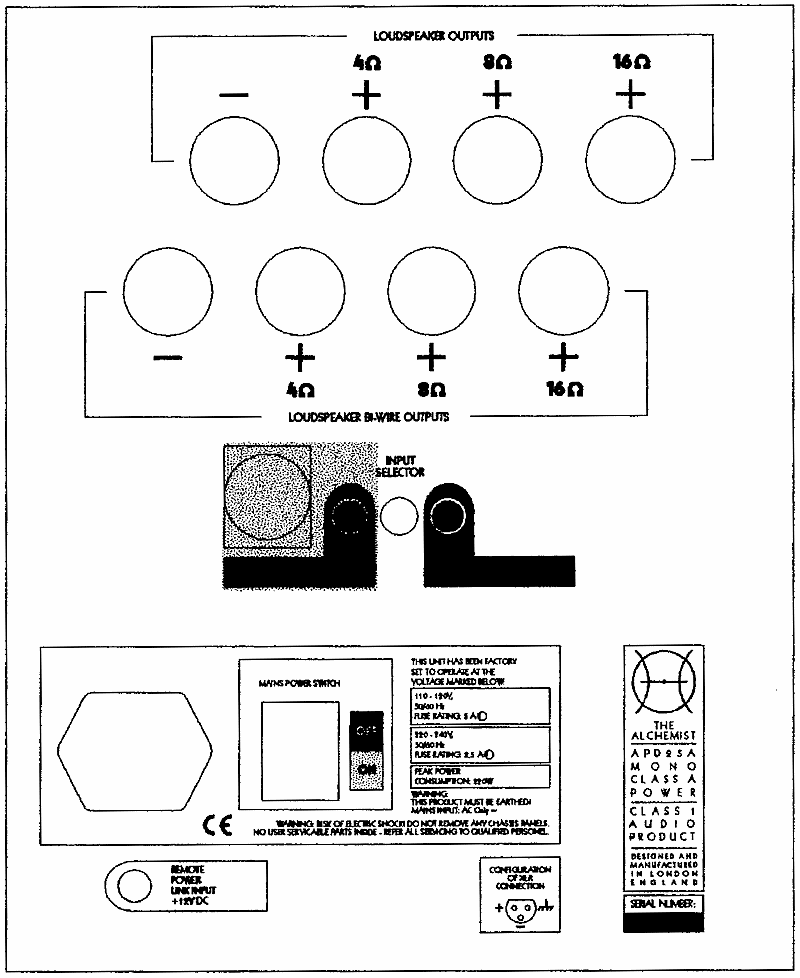

Class A amplifiers with 1.2 metres of heatsink radiating area! Balanced or unbalanced inputs (switched via an input selector on the rear), designed to be used with The Alchemist Pre pre-amplifier. Sold in pairs for stereo. Independent 4, 8 or 16 ohm load speaker outputs connections are provided and these are doubled-up for easy biwiring. If connected correctly with other models in the "The" range, activating The Pre amplifier sends a voltage trigger to the others so that they switch on and off at the same time.
Original selling price: £10,000/pair
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Alchemist The Mono Power Amplifiers are extremely rare.
Orange line
Have you something to contribute to this page? Please contact the site administrator.
