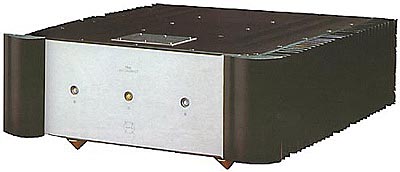

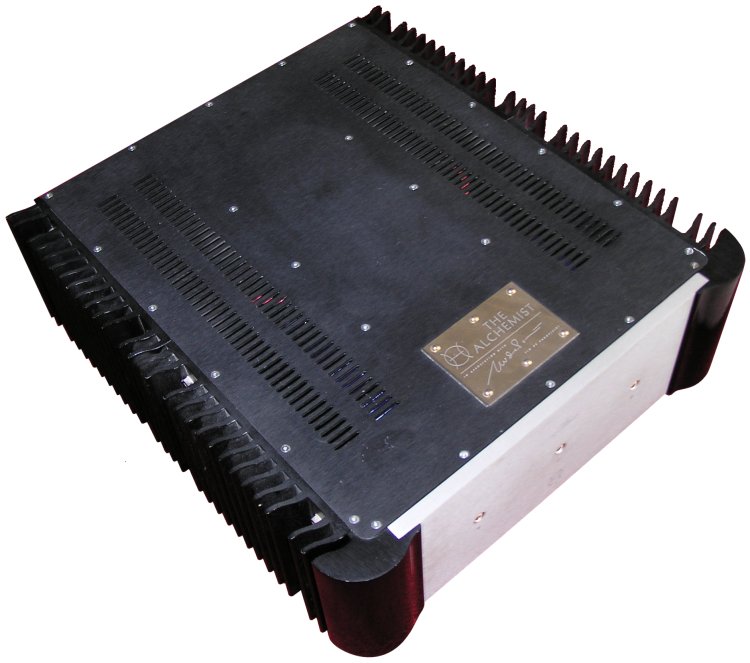

Alchemist "The Stereo" APD27 Stereo Power Amplifier
Orange line

Alchemist "The Stereo" APD27 Stereo Power Amplifier

Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market
Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Input Sensitivity:   900mV for Maximum Output
Maximum Output:    200W, 20Hz - 20KHz
Distortion @ 1KHz:   Less than 0.5%
Distortion @ 10 KHz:   Less than 0.5%
Distortion @ 20 KHz:   Less than 0.5%
Input Impedence:   270Kohms
Noise:   Less than 500mV
Frequency Response:   3Hz - 100KHZ (-3dB) @ 8W
Peak Power Consumption:   960W
Balanced Input as for Professional Audio Equipment: AES14-1992
Pin 1:   Ground
Pin 2:   + (Positive)
Pin 3:   - (Negative)
Dimensions (W x H x D):   462mm x 180mm x 530mm
Dimensions, packed (W x H x D):   620mm x 340mm x 670mm
Weight:   33kg
Weight, packed:   35kg
Orange line
Orange line
Downloads:
"The" Alchemist Series instruction manual (1MB)
Orange line
Design:

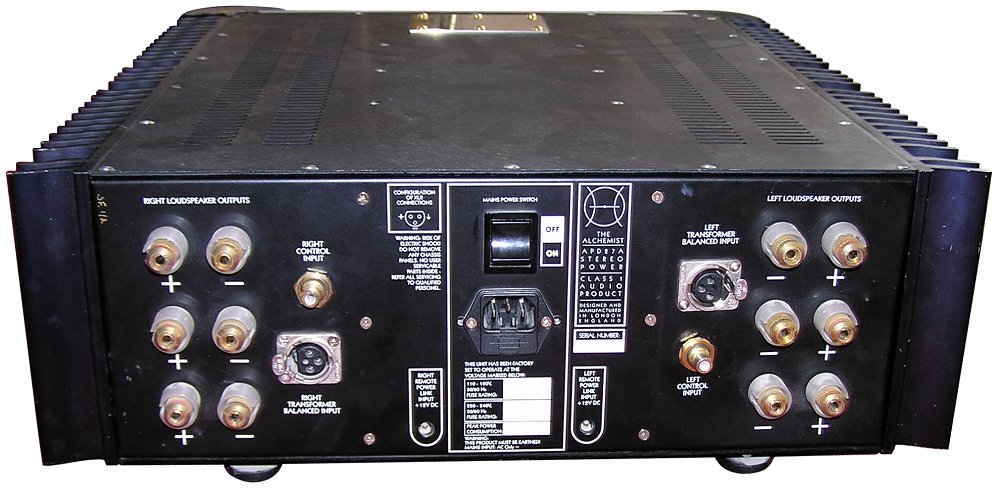

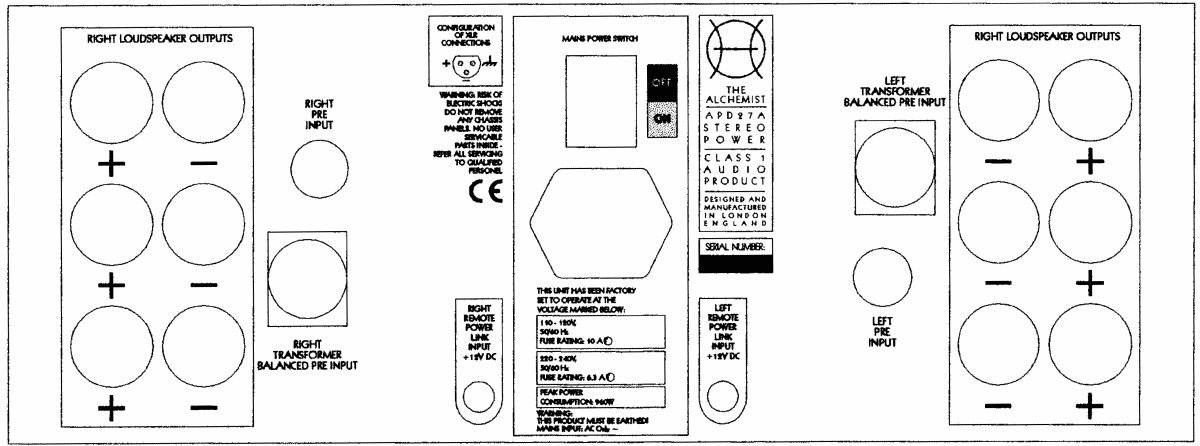

Class A/B power amplifier. Twin mono design with 2 x 200 watts (RMS) power. Balanced (XLR) and unbalanced (RCA/phono) stereo inputs and three sets of speaker ouptuts (for easy bi or tri-wiring). If connected correctly with other models in the "The" range, activating The Pre amplifier sends a voltage trigger to the others so that they switch on and off at the same time. Designed to be used with The Alchemist Pre pre-amplifier.
Original selling price: £5,000
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Alchemist The Stereo Power Amplifiers are extremely rare.
Orange line
Have you something to contribute to this page? Please contact the site administrator.
