Alchemist TS-D-1 DAC
Orange line

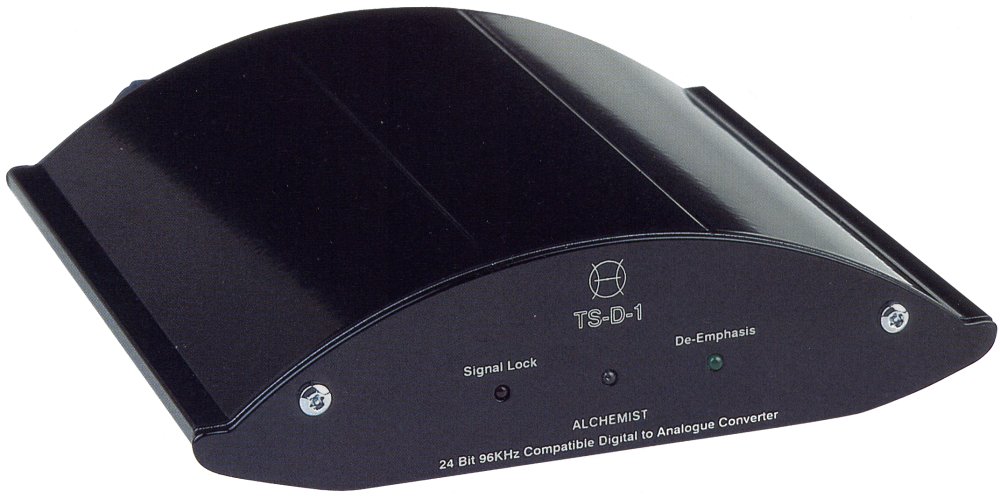

Alchemist TSD1 DAC
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
DAC Type:   24 Bit, 96KHz, 8X Oversampling
Sampling Rates:   All rates in range 16kHz - 96kHz
Data Types:   16, 18, 20 and 24 Bit SPDIF
0dB Level:   2V rms
Signal/Noise Ratio:   104dB
Frequency Response:   4Hz-21kHz
Dynamic Range:   111dB
Digital Filter:   Delta Sigma multi-Layer
Output:   2.00V @ 0dB
THD+n:   -96dB
Master Clock:   256Fs
De-Emphasis (44.1kHz):   Digital domain <0.02dB error
W x H x D   154 x 45 x 170 mm
Orange line
Orange line

Downloads:
HiFi World Review
Orange line
Design:
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Original selling price: $430 / £300 (approx.)
Orange line
Have you something to contribute to this page? Please contact the site administrator.
