Alchemist TS-D-2 DAC
Orange line

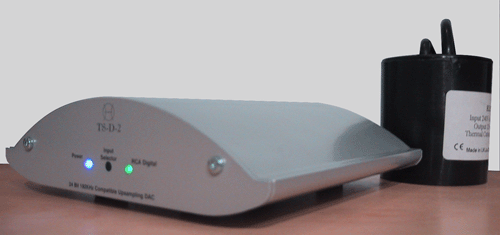

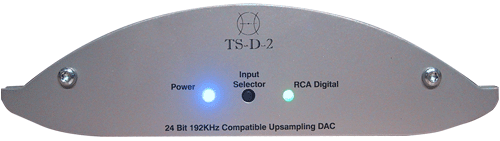

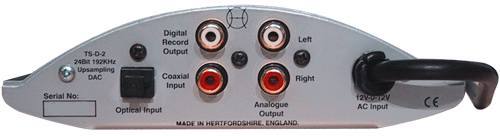

Alchemist TSD2 Digital to Analogue Converter
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S

Orange line
DAC Type:   24 Bit, 192KHz, 64X Oversampling, 5-Layer DAC
Sampling Rates:   Supports all sampling rates in range 32kHz - 96kHz
All data upsampled to 192kHz (Internally)
Data Types:   16, 18, 20 and 24 Bit SPDIF
0dB Level:   2V rms
THD+n:   >-92dB
Linearity:   +/- 0.3dB to 100dB
Signal/Noise Ratio:   >-100dB
Frequency Response:   DC 21.05kHz
Dynamic Range:   >100dB
Digital Filter:   Delta Sigma 5-Layer
Output:   2.00V @ 0dB
Dimensions:   154 (W) x 45 (H) x 170 (D) (mm)
Orange line
Orange line
Downloads:
Instructions
Orange line
Design:
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Orange line
Have you something to contribute to this page? Please contact the site administrator.
