Alchemist Product8 2 Channel Power Amplifier
Orange line

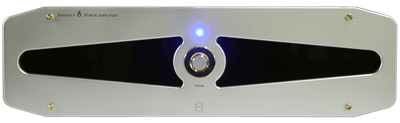

Alchemist Product Eight Two Channel Power Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S

Orange line
Input Sensitivity (RCA):   1V
Input Sensitivity (XLR):   2.2V
Output @ 1kHz into 8 ohms:   >150 Watts RMS
Output @ 1kHz into 4 ohms:   >256 Watts RMS
Bridged Output @ 1 kHz into 8 ohms:   >409 Watts RMS
Frequency Response @ 3V o/p:   -3dB @ 155kHz
Distortion @ 15V o/p, 1kHz:   <0.05% THD
Distortion @ 15V o/p, 10kHz:   <0.1% THD
Residual Noise:   Typically 70microV
Input Impedance:   8k ohms unbalanced
25k ohms balanced
Peak Power Consumption:   550W
External Fuse Rating:   8A@110-120V
6A@220-240V
Dimensions (W x H x D):   470mm x 360mm x 140mm
Weight (Packed):   25Kg
Orange line
Orange line
Downloads:
Instructions (787KB)
Orange line
Design:
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Orange line
Have you something to contribute to this page? Please contact the site administrator.
