Alchemist Kraken APD19/A Mono Power Amplifier
Orange line
Alchemist Kraken APD19A Mono Power Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market
Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S

(APD19a)
Input Sensitivity:   950mV
Output @ 1kGz into 8 ohms:   >55Watts RMS (Typ. 60W)
Freq Response @ 3V o/p:   -3dB@100kHz
Distortion @ 15V o/p, 1kHz:   <1% THD
Distortion @ 15V o/p, 10kHz:   <1% THD
Residual Noise:   <1mV
Power Consumption (idle):   50 Watts
Power Consumption (peak power)   100 Watts
Dimensions (W x H x D):   320mm x 85mm x 240mm
Weight (packed)::   APD19: 7.5kg. APD19A:10kg
Orange line
Alchemist Kraken APD19 Mono Power Amplifier

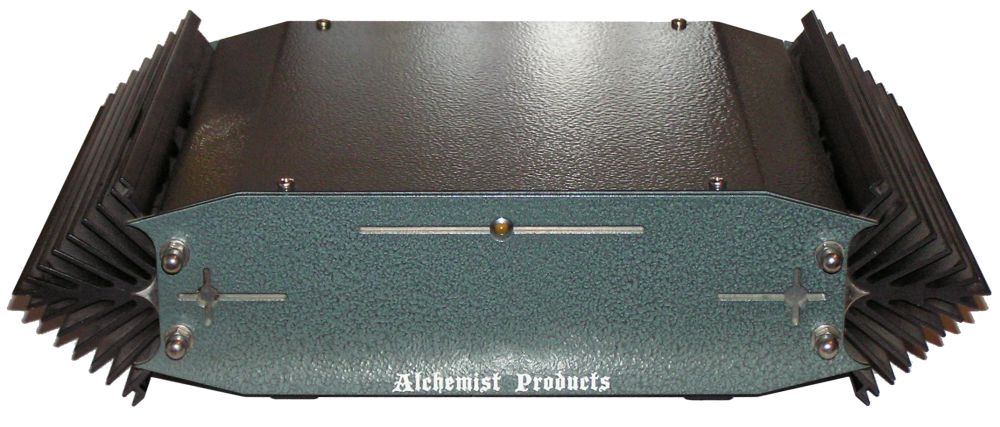

MkI Power Amp		 Alchemist Kraken MkI Pre & Power Amplifier stack

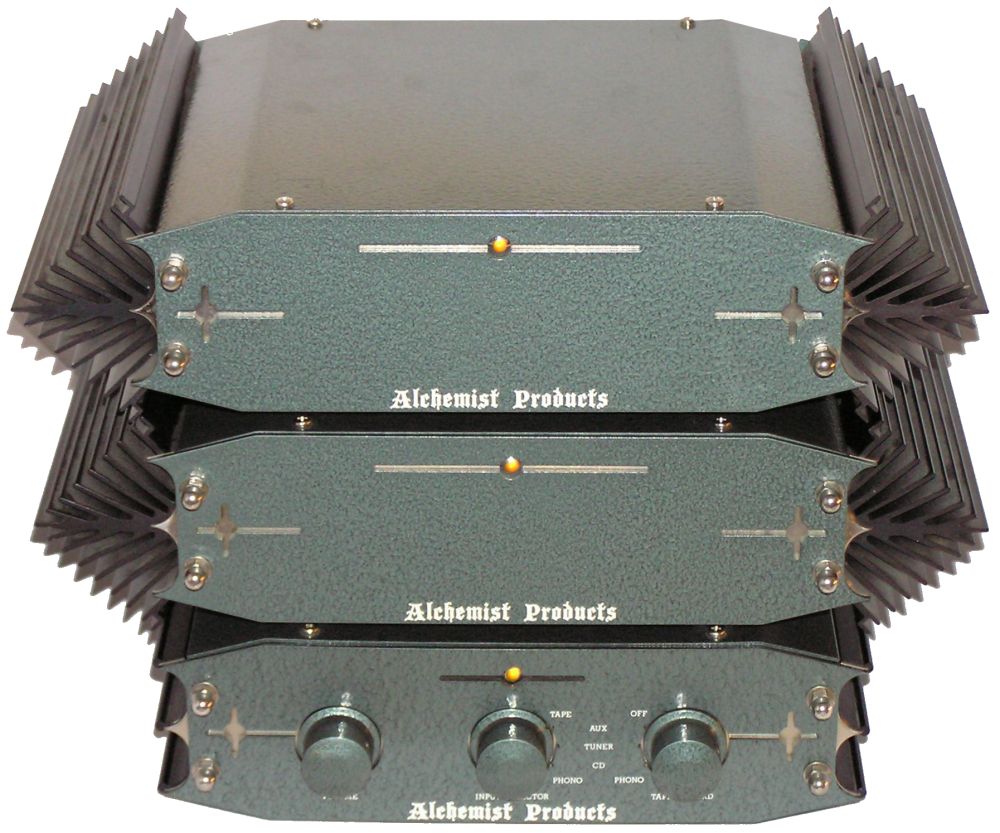

Kraken MkI stack
Orange line
Downloads:
Kraken mk1 brochure (6.13MB)
Orange line
Design:
Class A mono power amplifier with external power supply. Single channel version of the Alchemist Kraken APD8 Stereo Power Amplifier.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Very rare. Few of these amps were manufactured, partly due to the comparatively small home cinema market which existed in the early 1990s - this amp was primarily designed for use in a Dolby Pro-Logic system - either as an add on for the centre channel or in a stack of five units..
Orange line
Have you something to contribute to this page? Please contact the site administrator.
