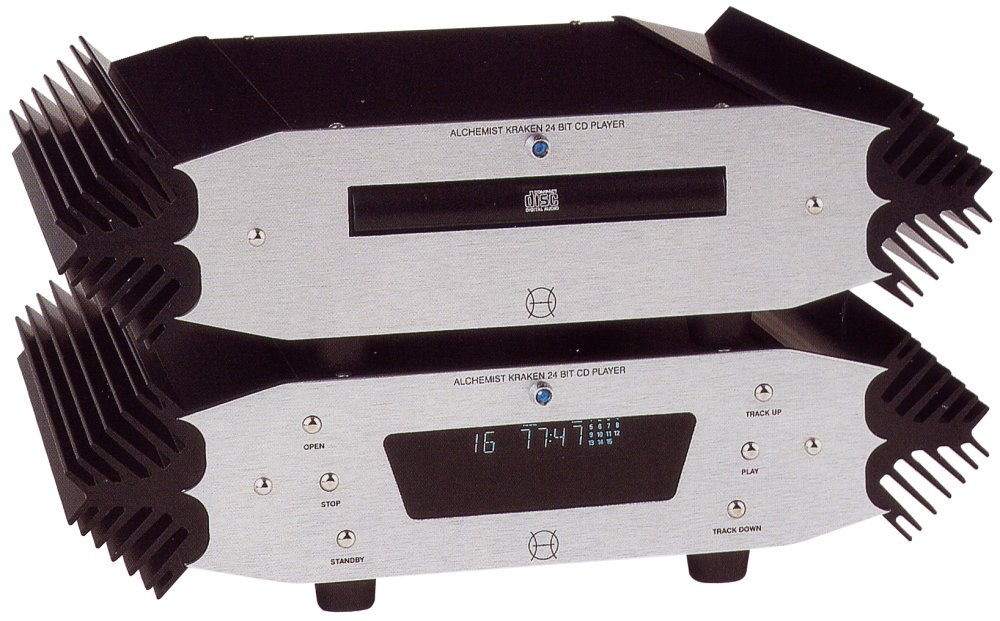

Alchemist Kraken APD9A CD Player
Orange line
Alchemist Kraken APD9A CD Player
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S

Orange line
Frequency Range:   DC - 22kHz
Amplitude Linearity:   -2dB (10Hz - 20kHz)
Phase Linearity:   00 (20Hz - 20kHz)
Dynamic Range:   >95dB
Signal to Noise:   -100dB
Channel Separation:   -100dB
Total Harmonic Distortion:   0.01%
Line Output Level:   2V RMS
DAC Type:   24 Bit Delta Sigma
Power Consumption:   24W
Dimensions (W x H x D) (each section):   320mm x 85mm x 300mm
Weight (Packed):   12kg
Orange line
Orange line
Downloads:
Kraken brochure (3.97MB)

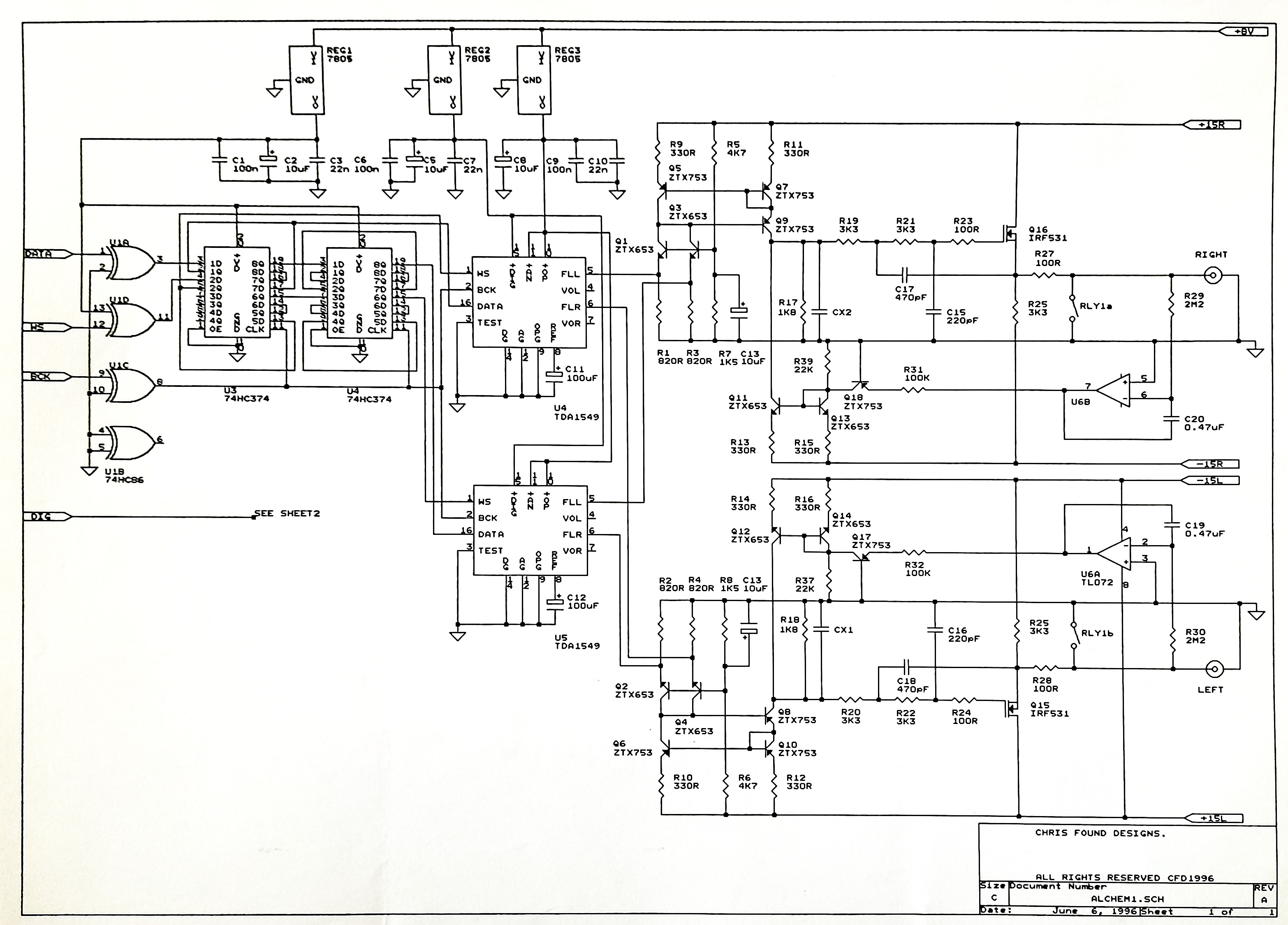

Kraken CD circuit diagram p1

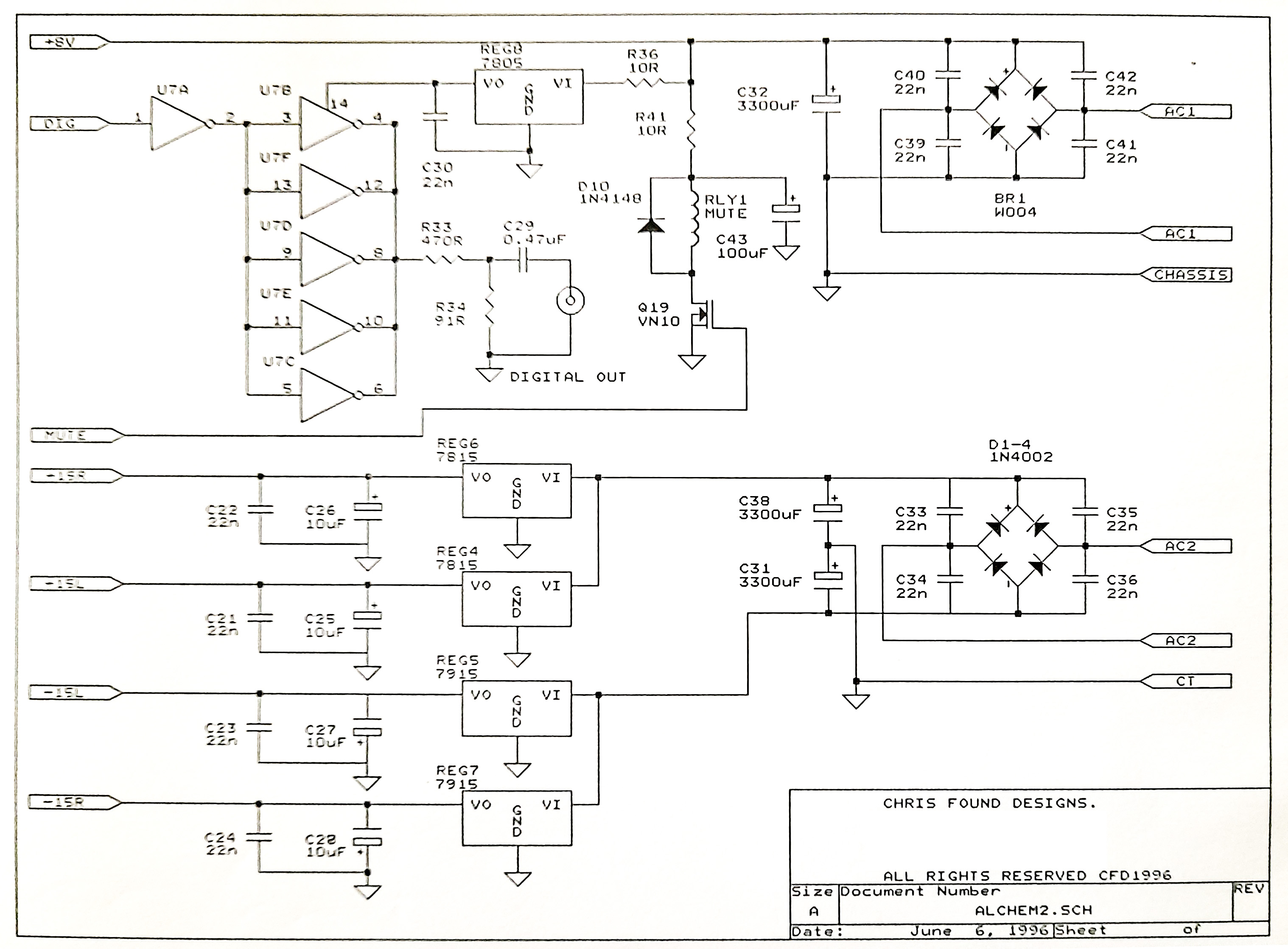

Kraken CD circuit diagram p2
Orange line
Design:
A modified version of the Alchemist Nexus CD Player, in a split, two-box design which Alchemist to place the power-supply and controls apart from the transport and DAC, giving superior performance. The heat sinks on the sides are merely cosmetic, ensuring the player matched the hot-running Class A amplifiers of the same range.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Original selling price: $1800 / £1000 - £1250
 Alchemist Kraken CD Player
Orange line
Have you something to contribute to this page? Please contact the site administrator.
