Alchemist Forseti APD34A DAC
Orange line

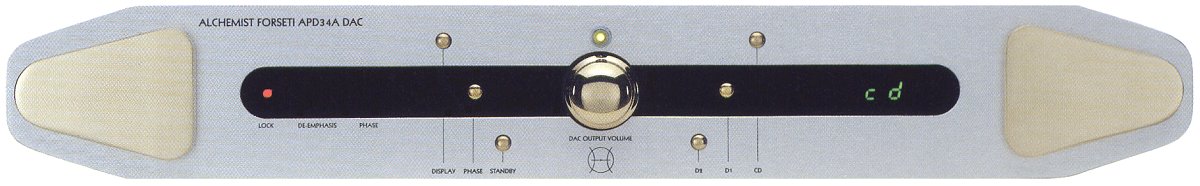

Alchemist Forseti APD34A Digital to Analogue Converter
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Frequency Range:   DC - 22kHz
Amplitude Linearity:   -2dB (10Hz - 20kHz)
Phase Linearity:   00 (20Hz - 20kHz)
Dynamic Range:   >100dB
Signal to Noise Ratio:   >-100dB
Channel Separation:   >-100dB
Total Harmonic Distortion:   -70dB
Balanced Output Level:   +/- 2.2 RMS
Unbalanced Output Level:   2.2V RMS
Dimensions (W x H x D):   464mm x 70mm x 390mm
Weight (Packed):   13kg
Orange line
Orange line
Downloads:
 Forseti Mk2 brochure (4.4MB) | Forseti Transport and DAC lizard advert
Orange line
Design:

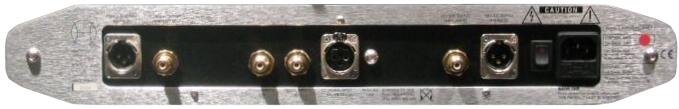

2 x Crystal CS4334 24 bit/96kHz Delta Sigma DACs, balanced output via XLR and line level via RCA/phono outputs, 2 x coaxial digital input via RCA/phono, AES/EBU input via XLR, built in volume control enables direct connection to a power amplifier if desired, dual mono circuit design. There are nine separate regulated power supplies for each DAC section.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Original selling price: $1585-$2000 (approx.)
Orange line
Have you something to contribute to this page? Please contact the site administrator.
