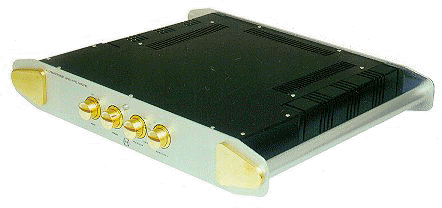

Alchemist Forseti APD21A Pre Amplifier
Orange line
Alchemist Forseti APD21A MkII Pre Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Input sensitivity (CD1, RCA):   330mV, for 1V output
Input sensitivity (CD1, XLR):   640mV, for 1V output
Input Sensitivity (CD2):   770mV, for 1V output
Gain   10dB
Maximum Output, unclipped   7V RMS
Frequency Response @ 3V o/p:   -3dB @ 55kHz
Distortion @ 3V o/p, 1kHz   < 0.01% THD
Distortion @ 3V o/p, 10kHz   < 0.01% THD
Residual Noise:   Below measurement threshold
Unbalanced Input Impedance:   15k ohms
Balanced Input Impedance:   33k ohms
Unbalanced Output Impedance:   50 ohms
Balanced Output Impedance:   50 ohms
Power Consumption:   14W
Dimensions (W x H x D):   464mm x 80mm x 380mm
Weight, Gross:   11kg
Orange line
Orange line
Downloads:
Forseti Mk2 brochure (4.4MB) | Forseti Pre Amplifier instruction sheet (2.08MB) | What Hi*Fi? review | HiFi World review | Forseti Bridging setup guide | Early Forseti brochure (6.13MB)
Orange line
Design:

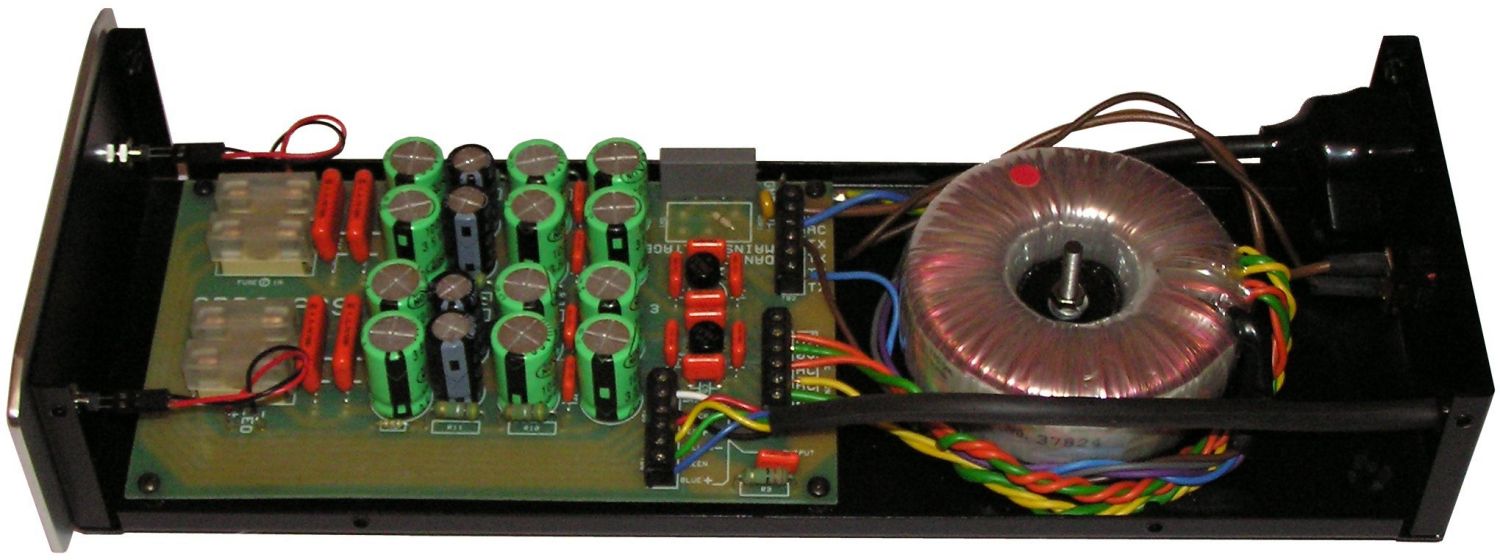

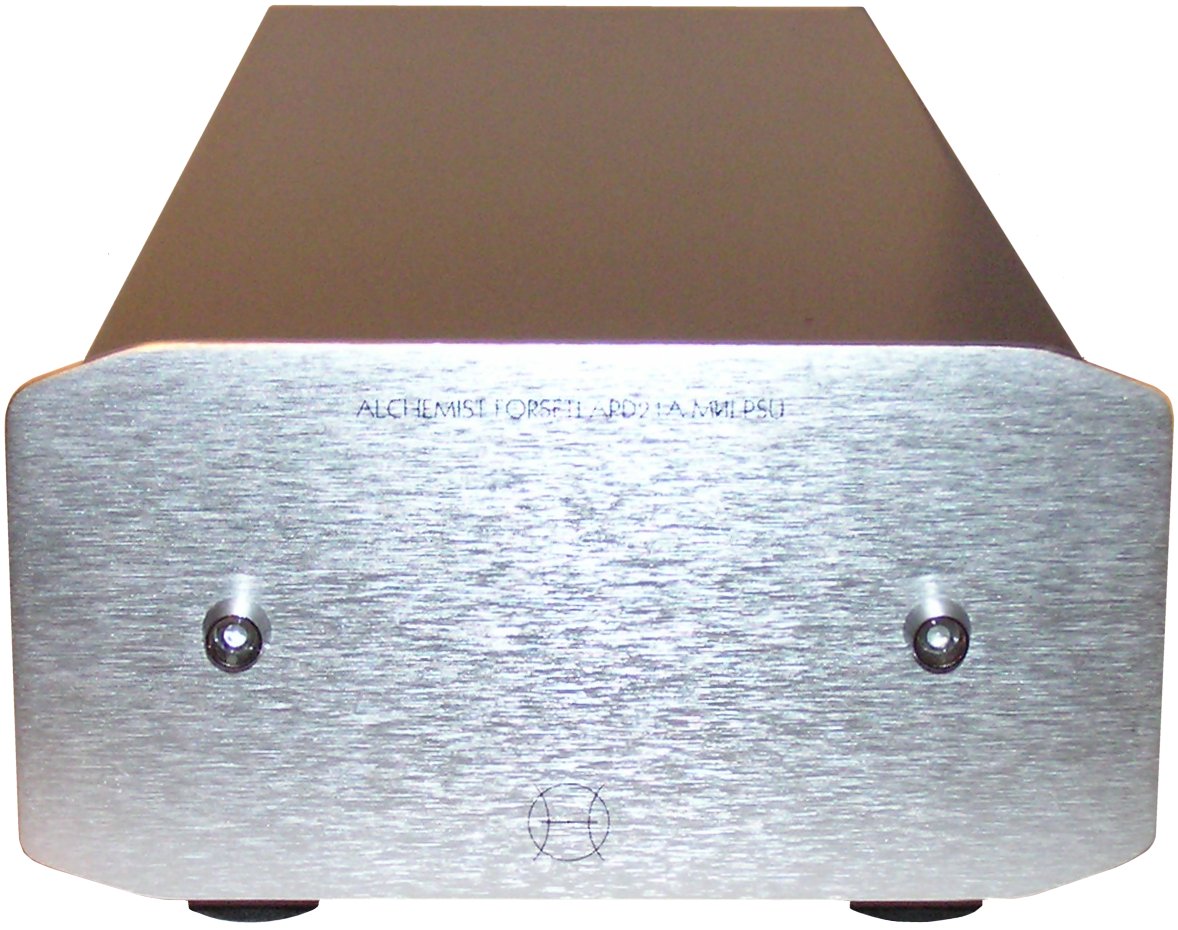

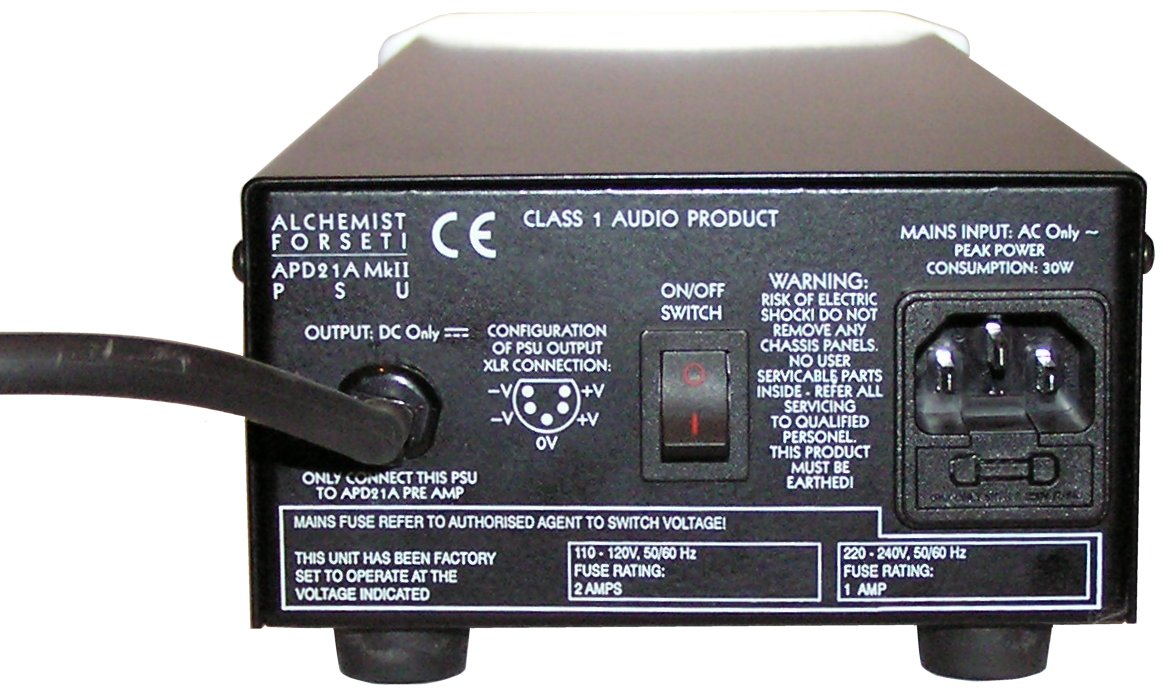

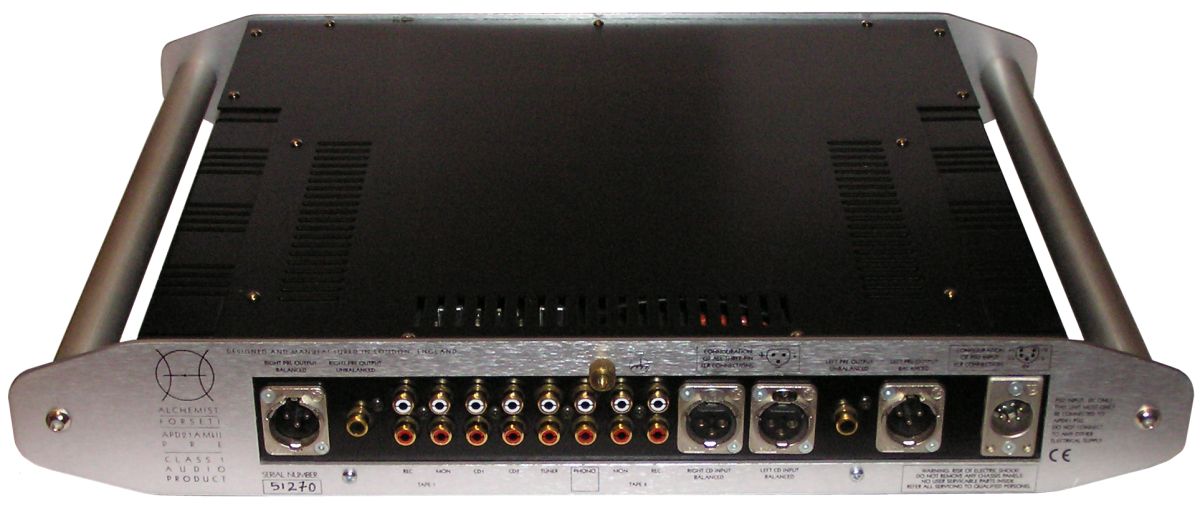

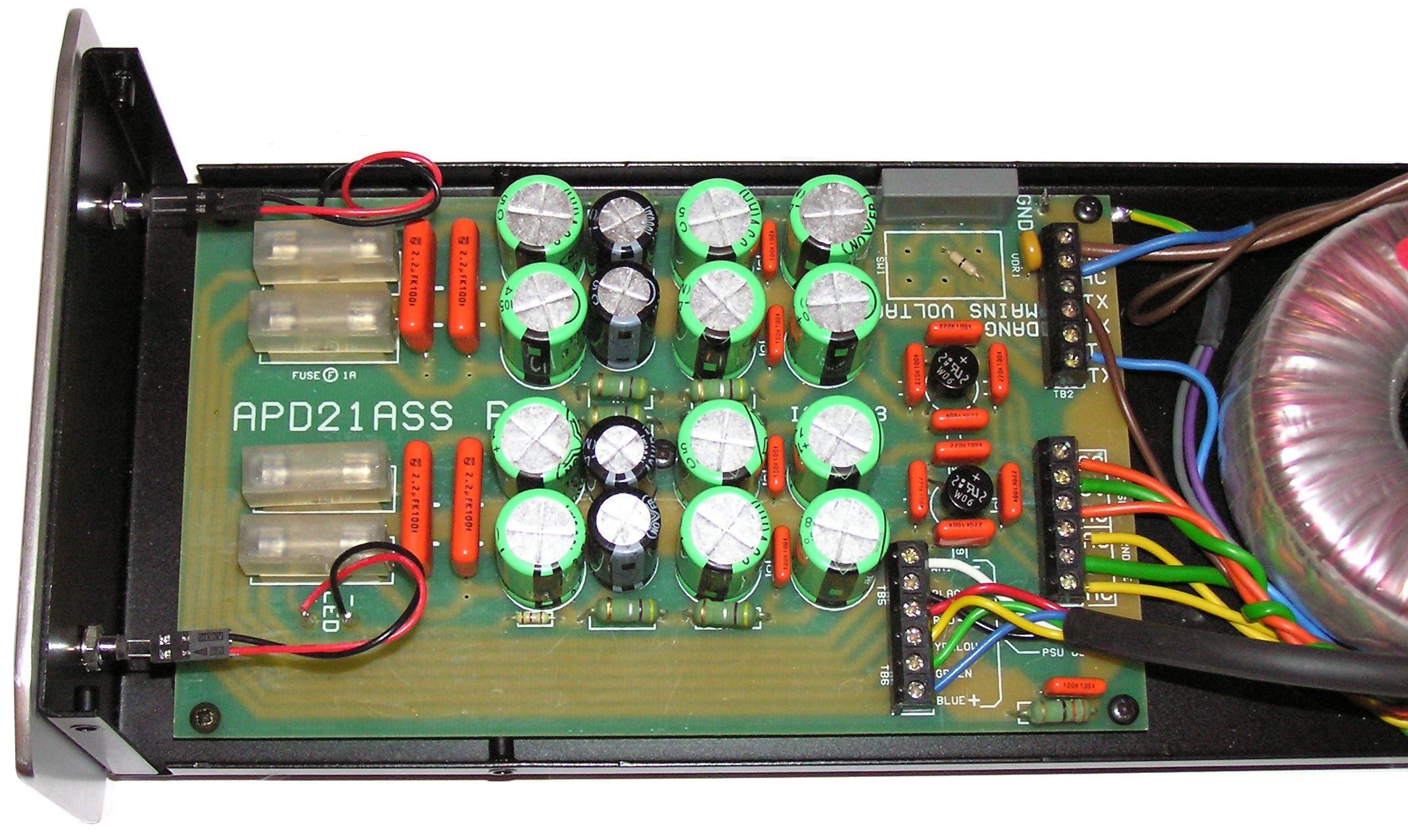

The Forseti Pre Amplifier was supplied with an outboard PSU which connected via an encaptured lead which terminated in a 5 pin "XLR" connector. Pre-amplified outputs are provided both via unbalanced RCA connectors and balanced XLRs. There were two tape loops and three line-level inputs, plus an additional line level input which could be upgraded to a moving magnet phono input using one of two optional plug-in boards. In addition, the APD21A offered balanced inputs for CD1.

Independent input and record output switching are provided.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Most sought after when paired with an Alchemist Forseti power amplifier or two as the two match aesthetically. These will often be found selling as a pair anyway, as they were often sold as pairs when new.
Original selling price: $1700 / £1000 (approx.)
