Alchemist Forseti APD21A MkII SS Pre Amplifier
Orange line

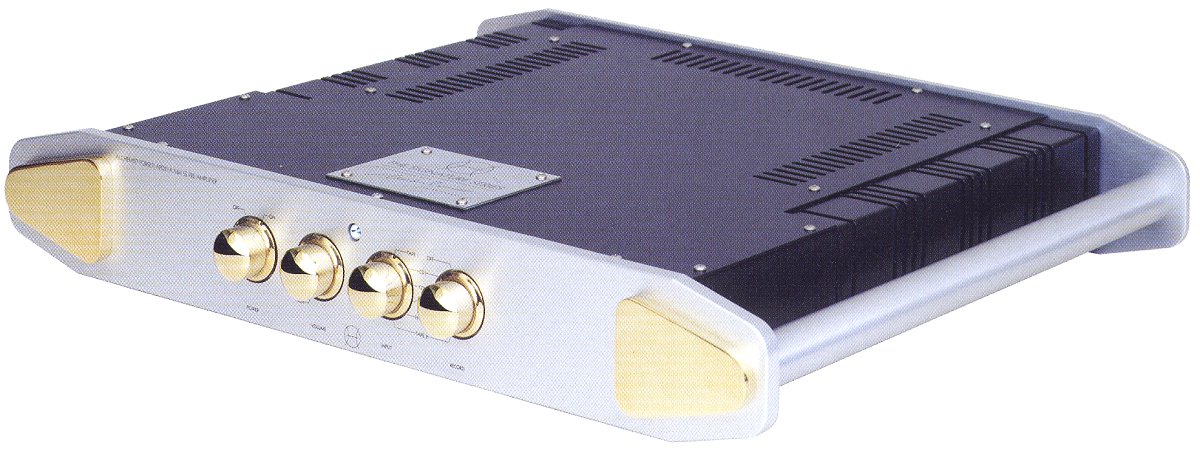

Alchemist Forseti APD21A MkII Signature Pre Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S

Orange line
Frequency Response @ 1V o/p (0dB):   20Hz - 20kHz (-3dB @ 105kHz)
Input Sensitivity RCA:   580mV for 6V o/p
Input Sensitivity XLR:   1.3V for 6V o/p
Channel Separation:   > 105dB
Distortion @ 1kHz @ 1V Output:   < 0.03% THD
Distortion @ 10kHz @ 1V Output:   < 0.035% THD
Residual Noise:   < 0.15mV
Power Consumption:   25 Watts
Dimensions (W x H x D):   465mm x 75mm x 390mm
Weight (Packed):   17kg
Orange line
Orange line
Downloads:
Forseti Mk2 brochure (4.4MB) | Forseti Bridging setup guide
Orange line
Design:
The Forseti Signature Pre Amp was based around the original Forseti Pre Amp, but with tweaks made to the design by Tim de Paravicini. These included the use of totally discrete electronic components rather than the ICs used in the original Forseti, a superior power supply and a thicker front panel.

The Alchemist brochure described the changes thus:

  • Whole circuit revised by Tim de Paravicini to incorporate fully discrete design.
  • Tim de Paravicini designed discrete balanced input stage.
  • Redesigned PSU stages to allow for tighter control of ripple contents.

Tim also designed a matching Signature Power Amplifier.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Most sought after when paired with the Alchemist Forseti APD20A MkII SS Power Amplifier.
Orange line
Have you something to contribute to this page? Please contact the site administrator.
