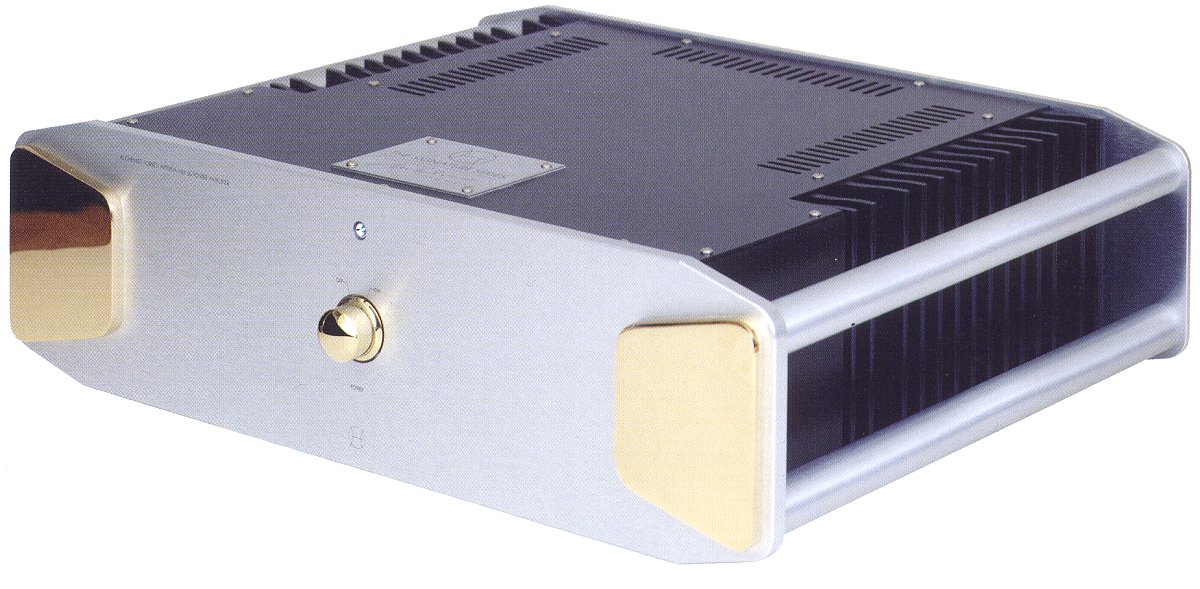

Alchemist Forseti APD20A MkII SS Power Amplifier
Orange line
Alchemist Forseti APD20A MkII Signature Series Power Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Input Sensitivity RCA:   1.6V for 29V o/p
Input Sensitivity XLR:   2.2V for 29V o/p
Output @ 1kHz into 8 ohms:   100 Watts RMS
Frequency Response @ 3V o/p (0dB):   20Hz - 20kHz (-3dB @ 95kHz)
Distortion @ 29V o/p, 1kHz:   < 0.05% THD
Distortion @ 29V o/p, 10kHz:   < 0.065% THD
Residual Noise:   < 0.25mV
Power Consumption (Idle):   100 Watts
Power Consumption (Peak):   360 Watts
Dimensions (W x H x D):   465mm x 135mm x 390mm
Weight (Packed):   28kg
Orange line
Orange line
Downloads:
Forseti Mk2 brochure (4.4MB) | Forseti Bridging setup guide
Orange line
Design:
Twin mono design, class AB. The Signature Power Amplifier was designed by Tim de Paravicini and based on the original APD20a Forseti Power Amplifier design, but with several enhancements. These included the use of totally discrete electronic components rather than the ICs used in the original Forseti, a superior power supply and a thicker front panel on the case.

The Alchemist brochure described the changes thus:

  • Revised output stages, incorporating high bias/current voltage mirrors in the pre driver stage.
  • Tim de Paravicini designed output chokes to stabilise frequency ranges and eliminate any form of DC offset.
  • Tim de Paravicini designed discrete balanced input stage.

Tim also designed a Signature Pre Amplifier to accompany the power amp.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Sought after, particularly by owners of an existing Signature Power Amplifier, to use the pair in a bi-amped or bridged mono configuration.
Orange line
Have you something to contribute to this page? Please contact the site administrator.
