Alchemist Forseti APD20A Power Amplifier
Orange line

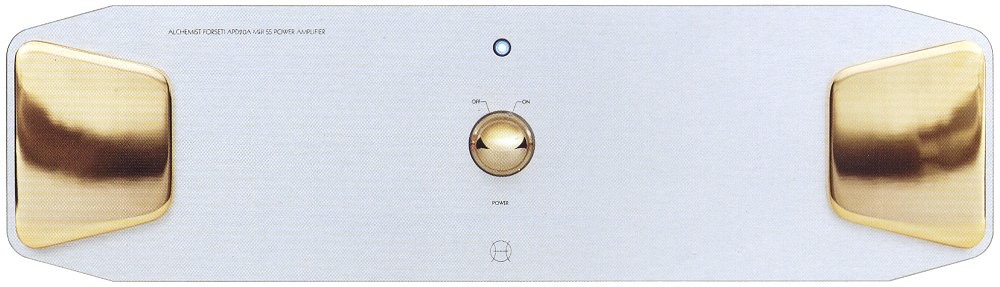

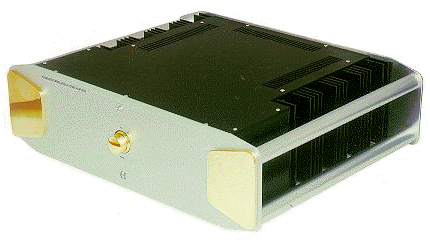

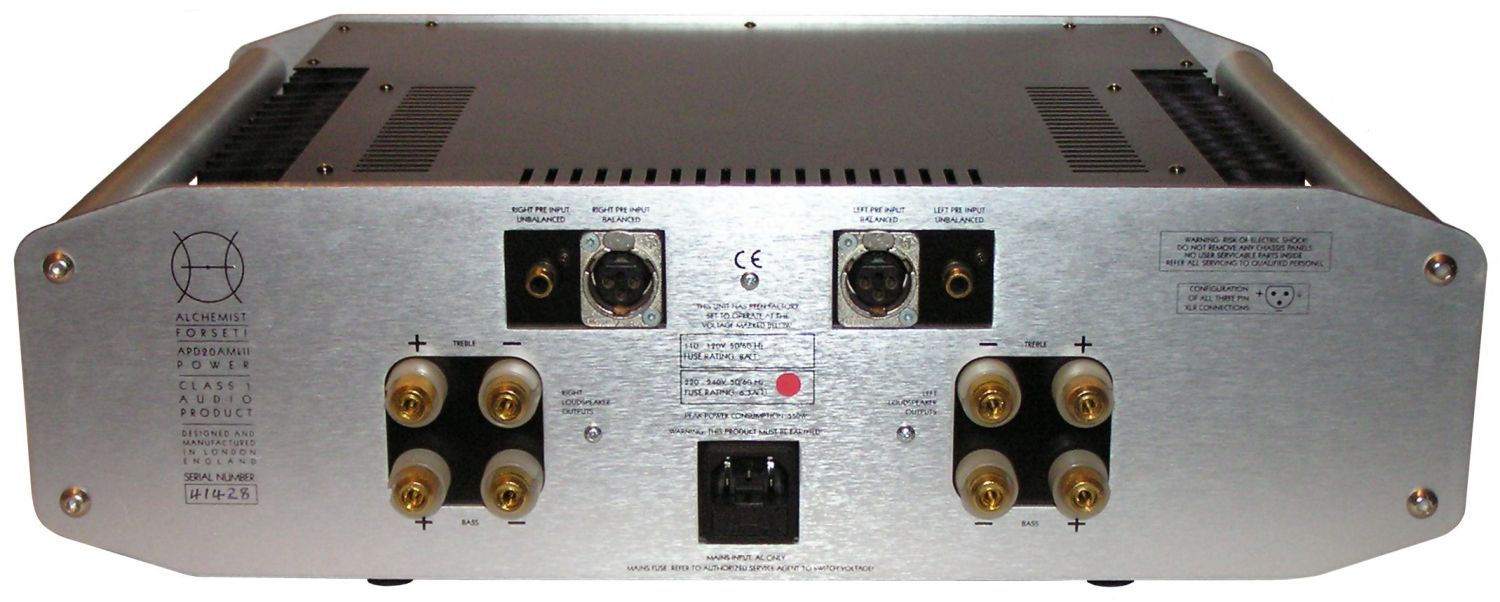

Alchemist Forseti APD20A Power Amplifier
Orange line

Specifications | Images | Downloads | Design | Servicing | 2nd Hand Market

Orange line

S    P    E    C    I    F    I    C    A    T    I    O    N    S
Orange line
Input Sensitivity (RCA):   1V
Input Sensitivity (XLR):   2.2V
Output @ 1kHz into 8 ohms:   > 153 Watts RMS
Output @ 1kHz into 4 ohms:   > 256 Watts RMS
Bridged Output @ 1 kHz into 8 ohms:   > 409 Watts RMS
Frequency Response @ 3V o/p:   -3dB @ 155kHz
Distortion @ 15v o/p, 1Khz:   < 0.05% THD
Distortion @ 15v o/p, 10Khz   <0.1% THD
Residual Noise:   Typically 70 microV
Input Impedance:   8k ohms unbalanced, 25k ohms balanced
Dimensions (W x H x D):   464mm x 140mm x 400mm
Weight, Gross:   21kg
Orange line
Orange line
Downloads:
Forseti Mk2 brochure (4.4MB) | Forseti Power Amplifier instruction sheet (1.88MB) | 8 page APD20a Mk II instruction manual | What Hi*Fi? review | HiFi World review | Forseti Bridging setup guide | Early Forseti brochure (6.13MB)
Orange line
Design:

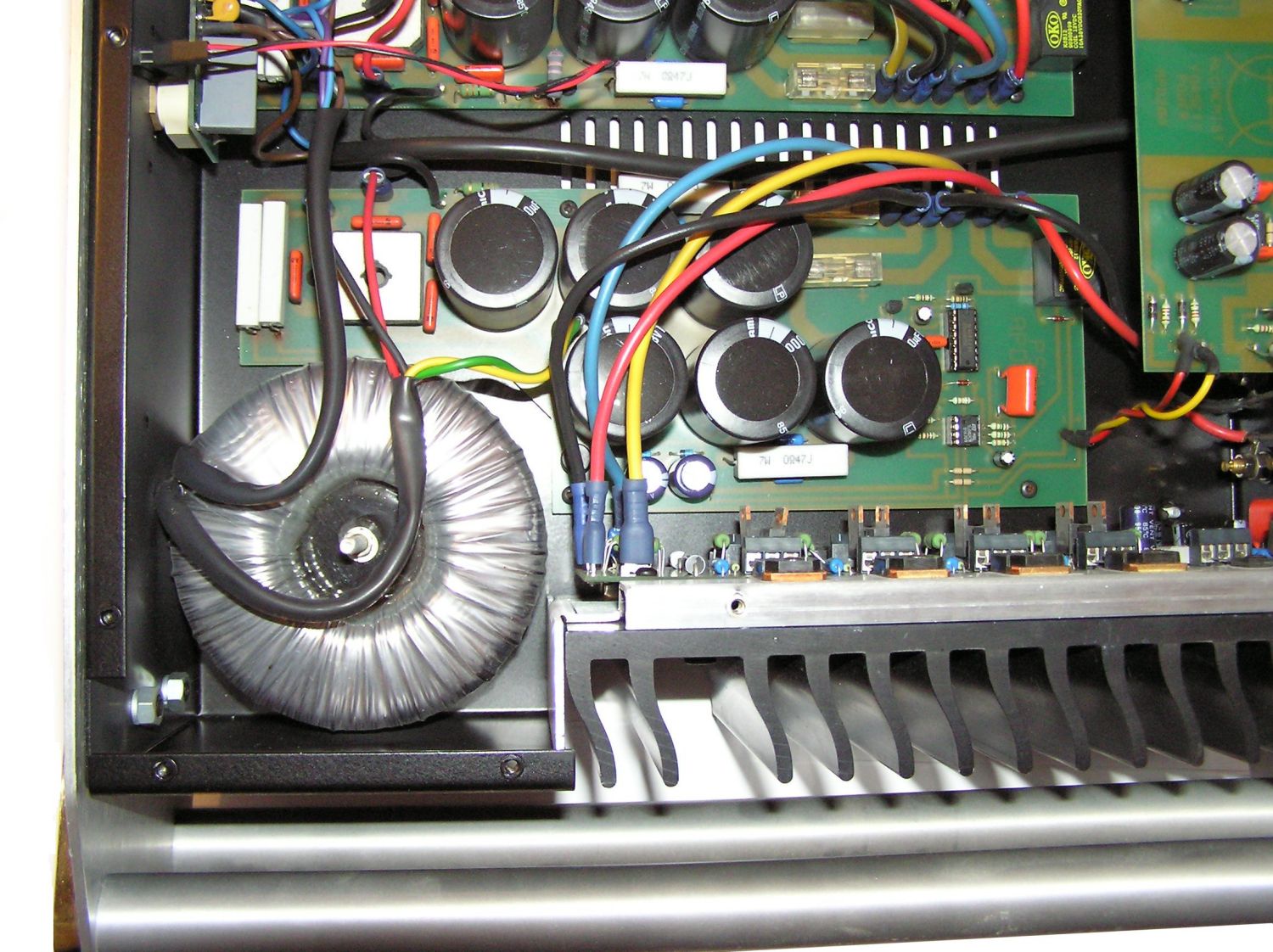

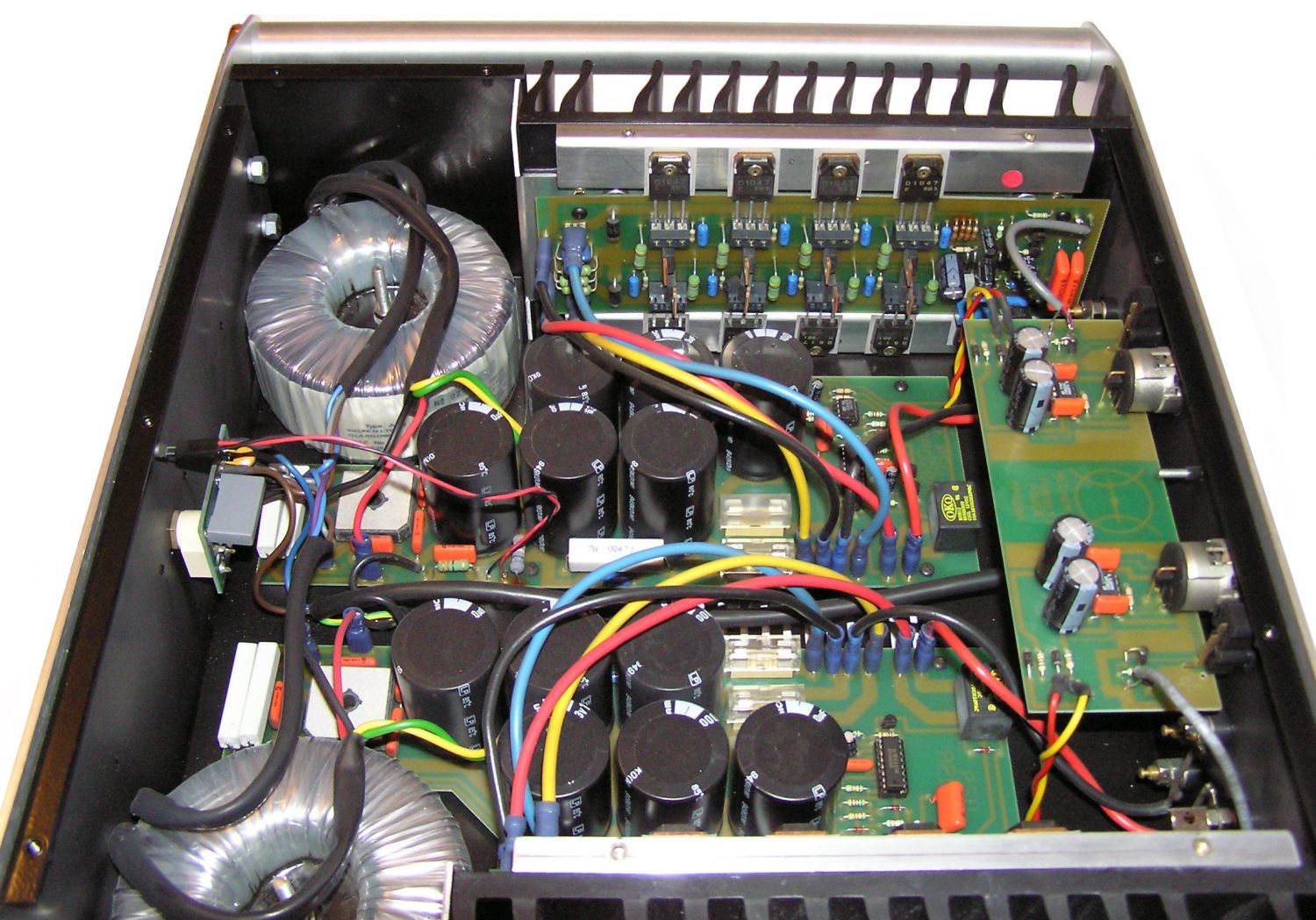

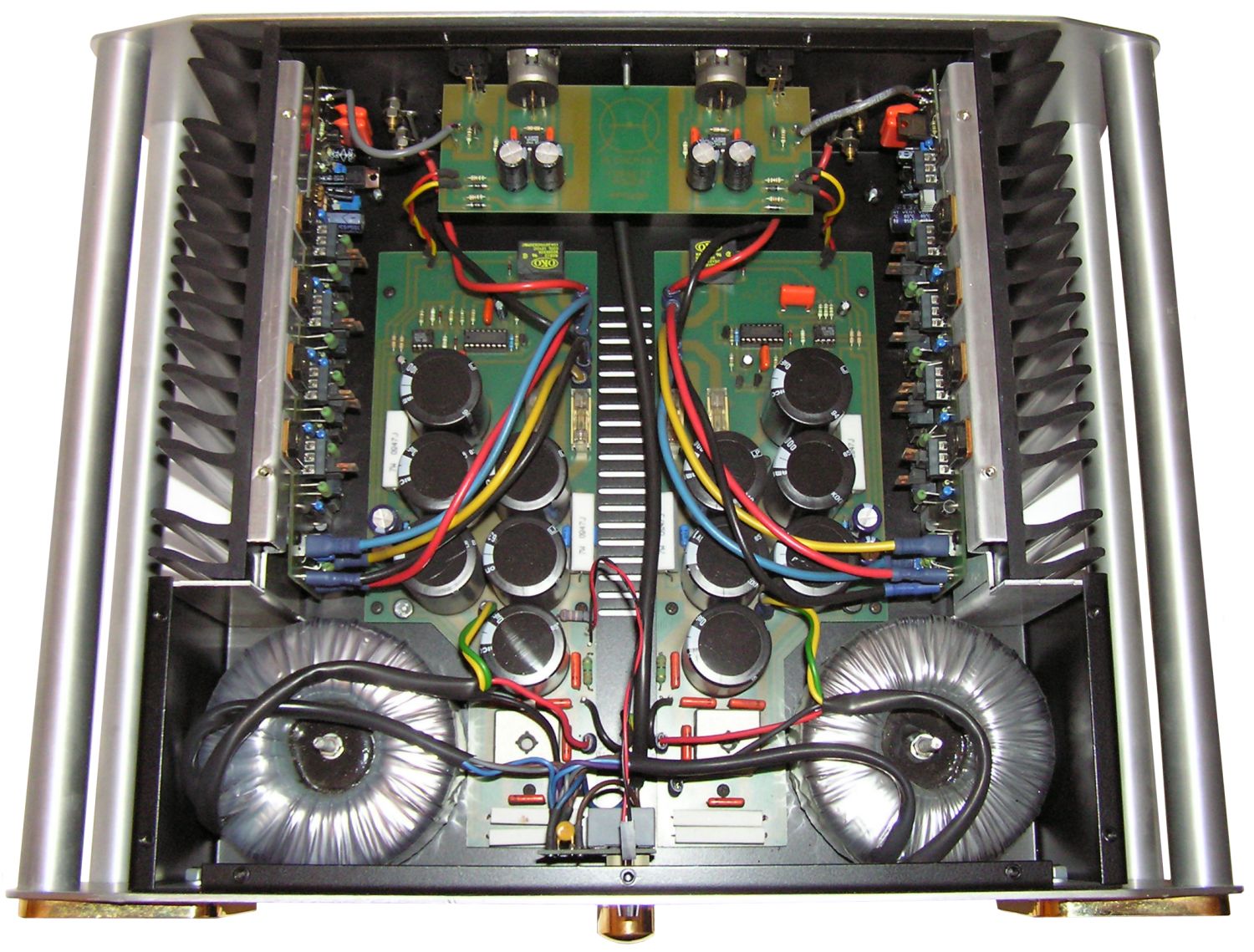

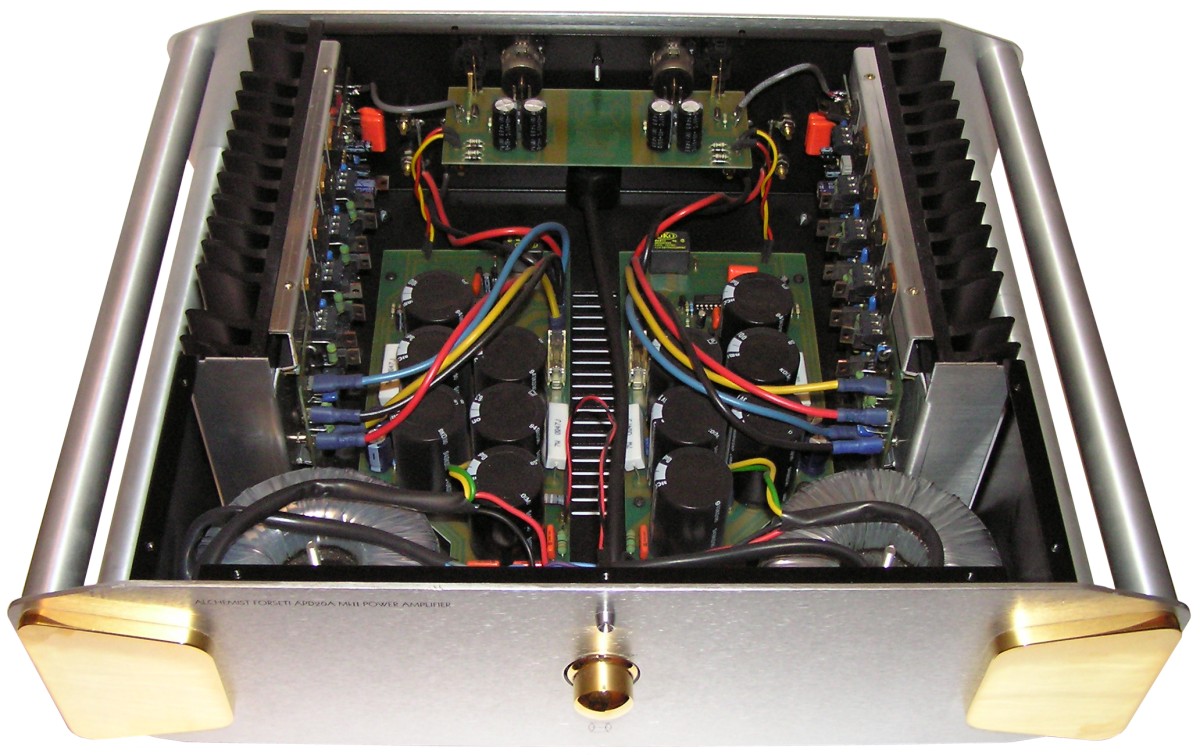

Twin mono design, class AB. Can be bridged mono to deliver over 400 watts RMS.
Orange line
Servicing:
DO NOT ATTEMPT ANY WORK YOURSELF UNLESS YOU ARE COMFORTABLE WITH ELECTRONICS AND KNOW WHAT YOU ARE DOING
Orange line
2nd Hand Market:
Sought after on its own by those with an existing Forseti Power Amplifier to allow their use in bridged mode or when paired with the Forseti Integrated Amplifier for bi-amping. Most commonly spotted second hand with the matching Forseti Pre-Amplifier though.
Original selling price: $2450-2499 (approx.)
Orange line
Have you something to contribute to this page? Please contact the site administrator.
